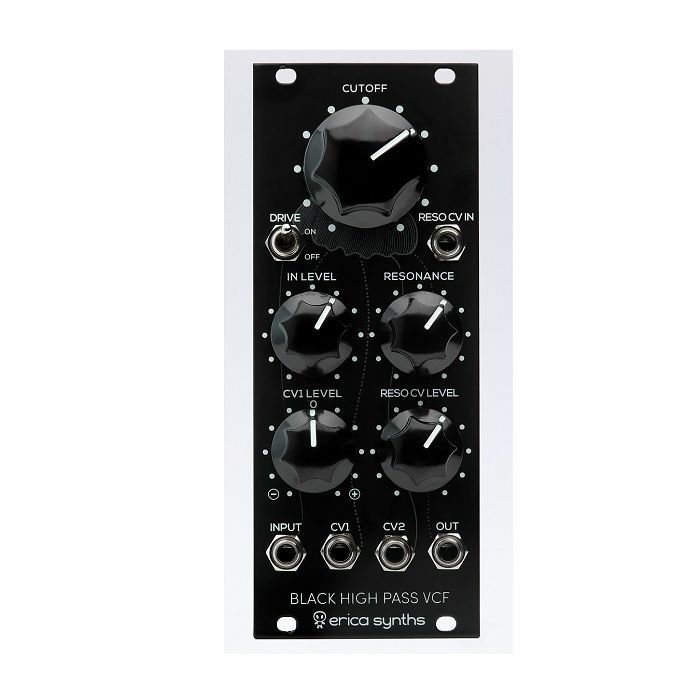

The Erica Synths Black High Pass VCF is designed for analogue purists, how take sound design seriously. It's highly stable, 24dB / oct resonant high pass VCF with voltage control over cuto (two CV inputs, one is with an attenuverter) and resonance. Bonus features are built in post-filter overdrive circuit with user-adjustable drive amount and the Black Filter Coupler connector.
When used in combination with the Black Low Pass VCF and the Black Filter Coupler, you get a Holy Trinity of VCFs for an ultimate analogue modular system.
Cutoff
This is the main control of the module - manual cuto frequency adjustment. The incoming CV is added to the cuto knob position.
Resonance
Adjust the resonance level manually. On settings over 1PM the filter will start to self-oscillate . The incoming CV is added to the resonance knob position
CV1 level
This is cuto CV attenuverter. Adjust the CV level to your taste!
Reso CV level
Adjust the resonance CV level to your taste.
CV1; CV2
These are the cuto CV inputs. The CV1 level is adjustable by CV1 LEVEL attenuverter knob, CV2 is applied to the cuto without attenuation.
Input
Patch your audio signals here.
Out
This is the audio output of the module
In Level
Adjust the audio signal level
Drive
For extreme results, flip the DRIVE switch ON! This will apply post-filter drive. You can preset drive level to your taste by adjusting a trimpot close to the switch on the back side of the module
Reso CV In
This is the resonance CV input.
SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB / oct
Power consumption +25mA; -29mA
Module width 10HP
Module depth 35mm
The Black High-Pass VCF has a hidden feature - the Black Filter Coupler connector. The Erica Synths Black Filter Coupler is a satellite module for the Black High-Pass and the Black Low-Pass VCFs, and it adds versatile Bandpass and Band Reject filter functionality to your modular system.
Please note, that the Black Filter Coupler works only with Erica Synths modules and you need both Black High-Pass and Low-Pass VCFs.
Use this trimpot to adjust post-filter overdrive to your taste.
Remove the jumper and connect the Erica Synths Black Filter Coupler. 2x5pin ribbon cable is supplied with the Black Filter Coupler module.
