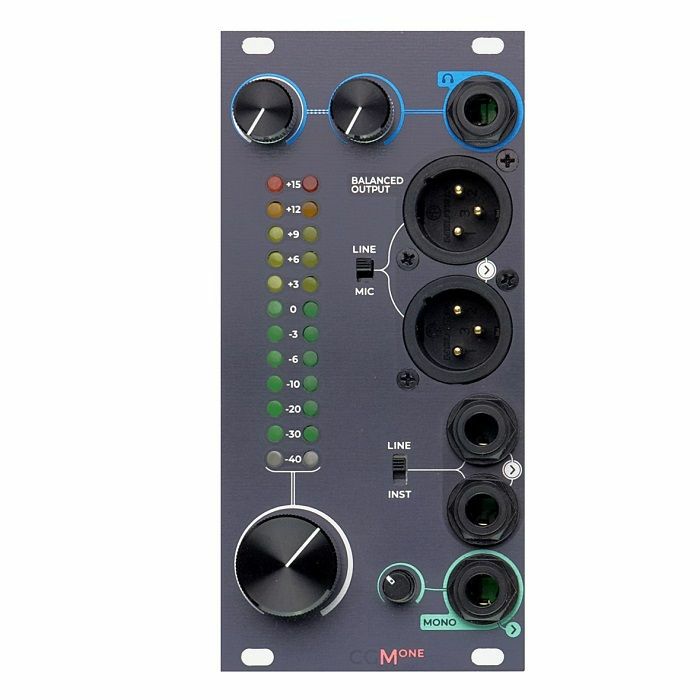

The Masterone is the first Frap Tools module designed to be connected exclusively with non-Eurorack equipment.
It features four separate output sections with different Neutrik connectors and adjustable gain levels to suit the most common live and studio situations (and even some uncommon ones).
With no inputs and just large-format outputs, it pushes even further the concept behind the M module: being a Eurorack system's gateway to the outside world.
XLR Balanced Stereo Outputs
Two XLR connectors (left and right) provide a balanced output with the expected 6 dB extra gain. In many cases, they can allow bypassing a DI box.
TRS Pseudo-Balanced Stereo Outputs
These outputs are very similar in concepts to the ones on the M module, but with large 1 / 4" jack connectors. It is possible to patch standard TS cables and use them as unbalanced outputs, or use TRS cables to interface them with balanced equipment (the ground is routed to both the ring and the sleeve, for a better performance than regular unbalanced outputs).
Attenuation Switches for Flexible Connectivity
If the two stereo outputs are too hot, a set of switches can attenuate them. The Line / Mic switch on the XLR outputs attenuates them by ~30 dB, while the Line / Inst switch on the TRS outputs attenuates them by ~15 dB.
Stereo Headphones Output with Pre-Fader Listening
The Headphones section allows you to monitor the Master output with an independent volume knob and, at the same time, take advantage of the PFL function on the Channels and the Groups. Rotate the PFL crossfader towards the blue section to blend the PFL modules with the Master sum and check if everything is okay before launching the next scene.
Mono Output with Dedicated Fader
Should you need an extra monitor on stage, or run the whole system through a vintage amp in the studio for parallel processing, the auxiliary monophonic outputs is the answer. It provides the sum of both channels in a handy, pseudo-balanced output with a dedicated fader: attenuate the line level by 15 dB, or amplify it by 6 dB.
12-LED VU Meter with Memory
A detailed VU Meter monitors the signal amplitude from -40 to +15 dB with peak memory on the upper LEDs.
Dimensions:
12HP
38 mm deep
85 mA +12V - 80 mA -12V
with headphones at high level (250O)
110 mA +12V 105 mA -12V
