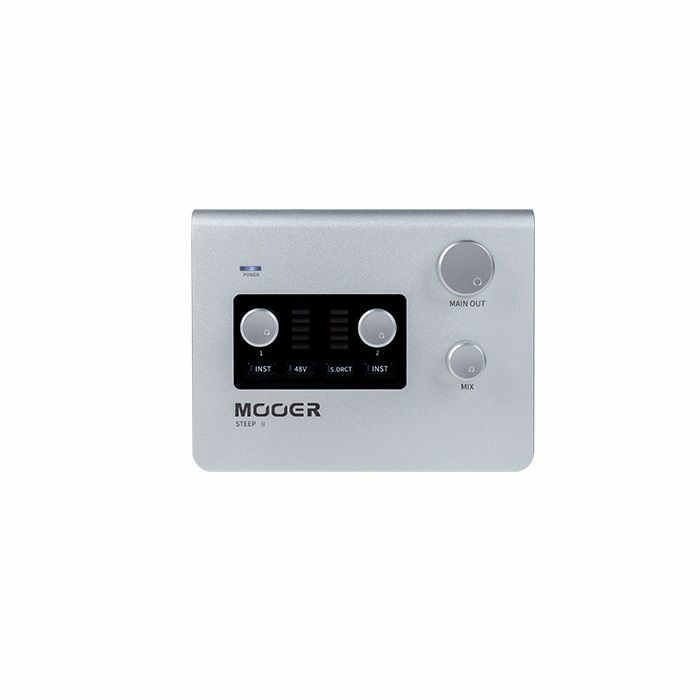

While many MOOER multi-effects pedals can be used as an audio interface, MOOER has finally announced their new line-up of audio interfaces with the Steep I and II.

Both models offer a multi-platform audio interface with support for high-resolution audio up to 24bit / 192 khz and combination microphone, line-in, and high-impedance value instrument support. Dual-channel outputs are also included as well as one USB-C port for power and one USB-C port for data transfer, that can also be used for power when connected to a PC. Both the Steep I and II include dual LED input level indicators, support for 48v phantom power, a stereo direct monitor button, and knobs to control main output volume, mix, and input gain levels.

The Steep II adds several features including dual combined 1 / 4" and XLR input jacks (Steep I includes a single 1 / 4" and one combined 1 / 4" and XLR input jacks) as well as MIDI IN / OUT ports for connecting to a MIDI keyboard, synthesizer, and other supported devices. To learn more about the Steep I and II, visit mooeraudio.com and download the product manual for full device specifications.

Specifications

Frequency Response: 20 Hz to 20kHz: 0.07dB
THD+N: 0.0094%
Minimum gain: -1 dBFS input with 22 Hz / 22 kHz bandpass filter
Maximum Input Level (minimum gain level):L +11 dBu
Gain Range: 50dB
Input impedance: 1.5M ohm

Line Outputs

Output Jack: 1 / 4" TRS jack*2 (support balanced signal)
Dynamic Range: 108dB (A-weighted)
Maximum Input Level (minimum gain level) : +5.746 dBu
THD+N: 0.019% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Input impedance 430 ohm

Headphone Outputs

Output Jack: 1 / 4" TRS jack*1
Dynamic Range: 104.9dB
Maximum Input Level (minimum gain level): +9.738 dBu
THD+N: <0.002% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Output impedance: <1 ohm
