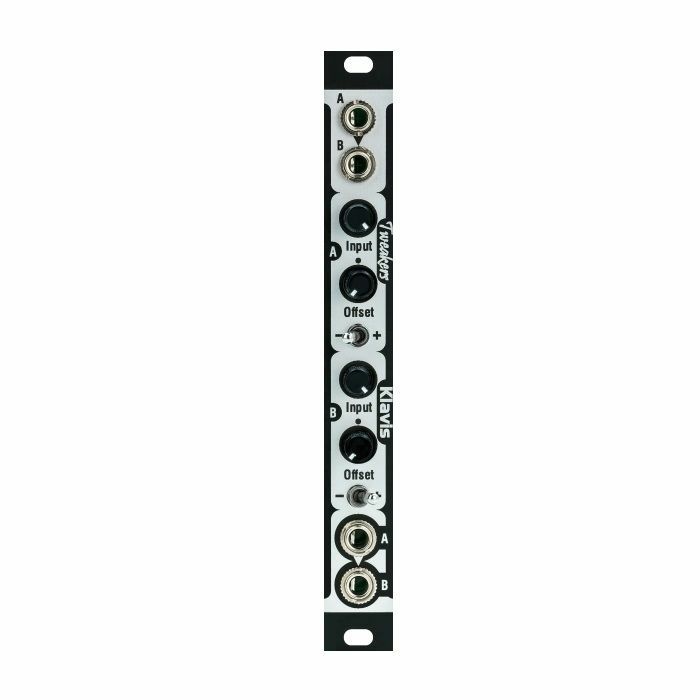

The Tweakers is a slim companion module that allows fine tuning your modulations.
Two channels offer control over gain and offset. A three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset.
Normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets. Normalizing of the outputs offers an extra mixer, summing the two channels.
The Tweakers is a perfect companion for modules whose modulation inputs lack such amenities.
Activating predefined settings at the flick of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.
It may come handy as an audio mixer too.
Dual gain / offset / polarity / mute CV processor
Two independent channels also useable jointly as a mixer or splitter
In each channel:
Input and output jack
Gain pot with up to 2.1 amplification
Bipolar offset pot
3-position switch:
Inverted polarity
Channel off
Normal polarity
Offset setting is independent of the polarity switch
Normalized input A can distribute the signal in both channels
Normalized outputs can mix the two channels on out B
Useable for audio
Compact module
Mechnical
Dimensions
mm
Height: 128.40
Width: 15.00
Depth behind panel: 33.00
Inches
Height: 5.06
Width: 0.59
Depth behind panel: 1.30
Eurorack
Height: 3HE
Width: 3HP
Current draw:
24mA +12V
24mA -12V
0 mA +5V
