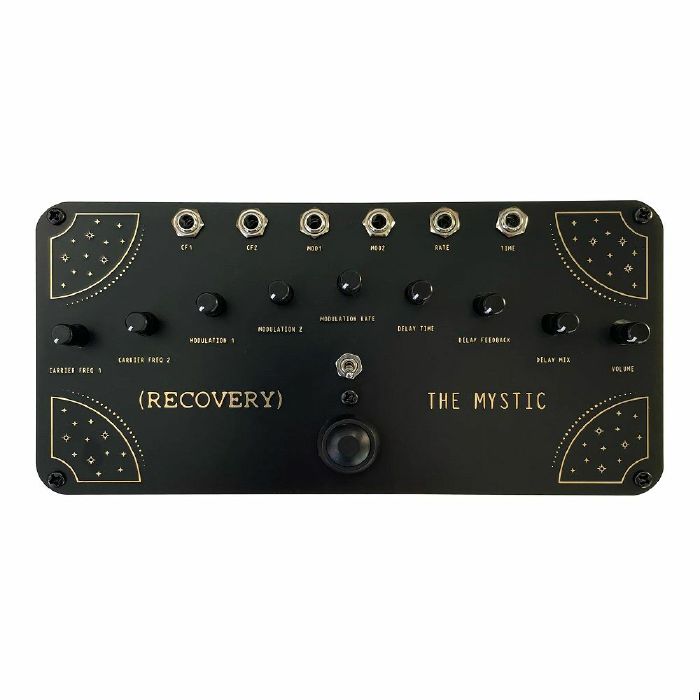

The Mystic is an experimental FM synth with 2 carrier frequencies, 2 modulators, and an analogue-style delay. All of the synth parameters are controllable via cv as well as time control in the delay section.
The Mystic generates colossal waves that swirl, echo, ascend, and plunge into an ever-changing, sonic playground. Transcend reality and let the mystic guide the way!
Powering Tip
The Mystic uses a 9VDC, negative-tip, 200ma power supply. It is a standard Boss-style power supply used for most effects pedals. The power supply is sold separately.
Once plugged in, the Mystic is powered up and ready to go. Simply unplug it from the wall when not in use.
Output: line level
A note about the output level
The Mystic runs at line level, to be used with pedals and other devices that also run at line level. If using with Eurorack, the output level needs to be converted, just as you would with any guitar pedal.
There are several Eurorack modules that do this, but the one Recovery use and recommend is the Strymon AA.1.
Output jack
The Mystic requires a 3.5mm cable to connect the audio output to other devices.
Latching switch
Use this to latch the sound on and off. Up is on, and down is off.
Controls
Carrier frequency controls
Each carrier works together to build a waveform. Usually it's CF2 that responds to pitch tracking, but that can vary depending on the setting. Think of CF1 and CF2 as 2 sign waves being folded in various ways. Sending independent CV into each one will not get traditional 1 v / oct pitch results, but a combination of pitch, texture and tone.
Modulator controls
These are used to shape the tone and texture of the folded waveform you've created with CF1 and CF2. Modulation rate will control the speed of the modulation texture.
Momentary button
Use this to momentarily turn sound on and off. The momentary Button only functions when the Latching Switch is in the off (down) position.
Latching switch
Use this to latch the sound on and off. Up is on, and down is off.
Delay time controls
Controls the delay / echo time.
Delay feedback
Controls the number of delay / echo repeats.
Delay mix
Controls the volume of the delay / echo signal.
Volume
Controls the overall output volume of the Mystic.
CV controls
These will accept CV voltage of up to +5 volts. The parameter you are controlling should be at 12 0'clock to get the most effect from the voltage input.
