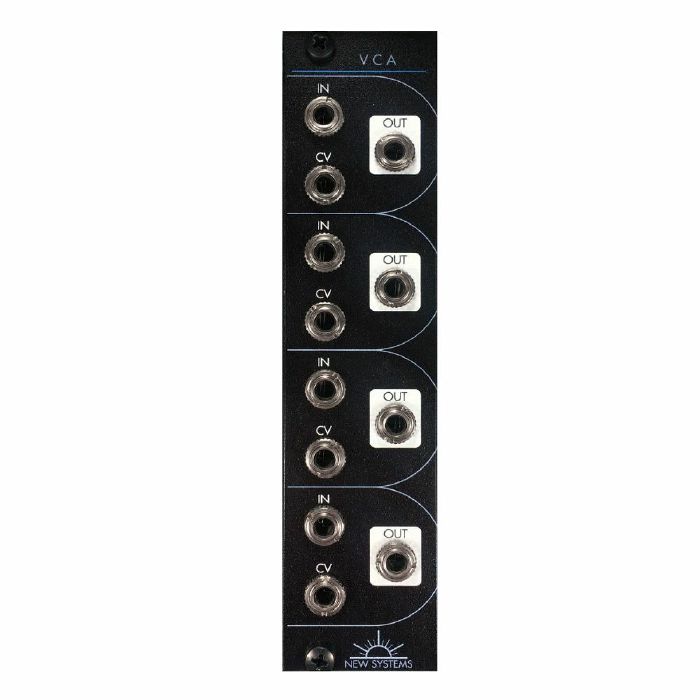

The New Systems Instruments VCA module gives you four well-calibrated VCAs in 6HP. These VCAs use operational transconductance amplifiers (OTAs) at their core, for true linear operation. However, unlike most OTA VCAs, the New Systems VCA is extremely low noise and distortion, coming in at < 0.2%, with ~0.05% typical.
There's no such thing as "transparent," particularly in synthesis, where the concept of an original signal that could be faithfully reproduced is often altogether absent. In a VCA in particular, a desirable envelope response can be even more important than accurate reproduction of the input at some fixed level.
The New Systems Instruments VCA has an extremely neutral, open sound. The envelope response sounds noticeably fast and accurate. If you want a dirtier VCA, stay tuned. New Systems are in the process of designing a different VCA with some control over signal and envelope linearity.
Specs
Size: 6HP
Depth: 22mm
Power Consumption: +12V 25mA / -12V 25mA
THD+N at 1kHz: 0.2% (max), ~0.05% (typical)
Output Swing: -10V - +10V peak
Input Range: -10V - +10V peak
CV Unity: 5V
Input Impedance: 85kO
Output Impedance: 150O
Output Drive: 2kO (min), 20kO+ (ideal)
